Suez · Sewage lifting station
Al Arbaeen Pumping Station
Suez, Egypt · 2020
- Capacity
- 10,000 m³/day
- Location
- Suez, Egypt
- Client
- Suez Wastewater Company
- Scope
- Civil + electromechanical rehabilitation
- Status
- Opened October 2020
- Operation & maintenance
- 10,000 m³/day
Overview
Replacement and renewal of the Al Arbaeen sewage lifting station in Suez, with a capacity of 10,000 m³/day.
New main pumps, pipework and switchgear, a standby generator upgraded from 200 to 250 kVA, and restoration of the station's concrete and steel. The station opened in October 2020.
Civil works
- Electrical foundation works
- Restoration of steel and concrete
- Supply and installation of sanitary works
Electromechanical works

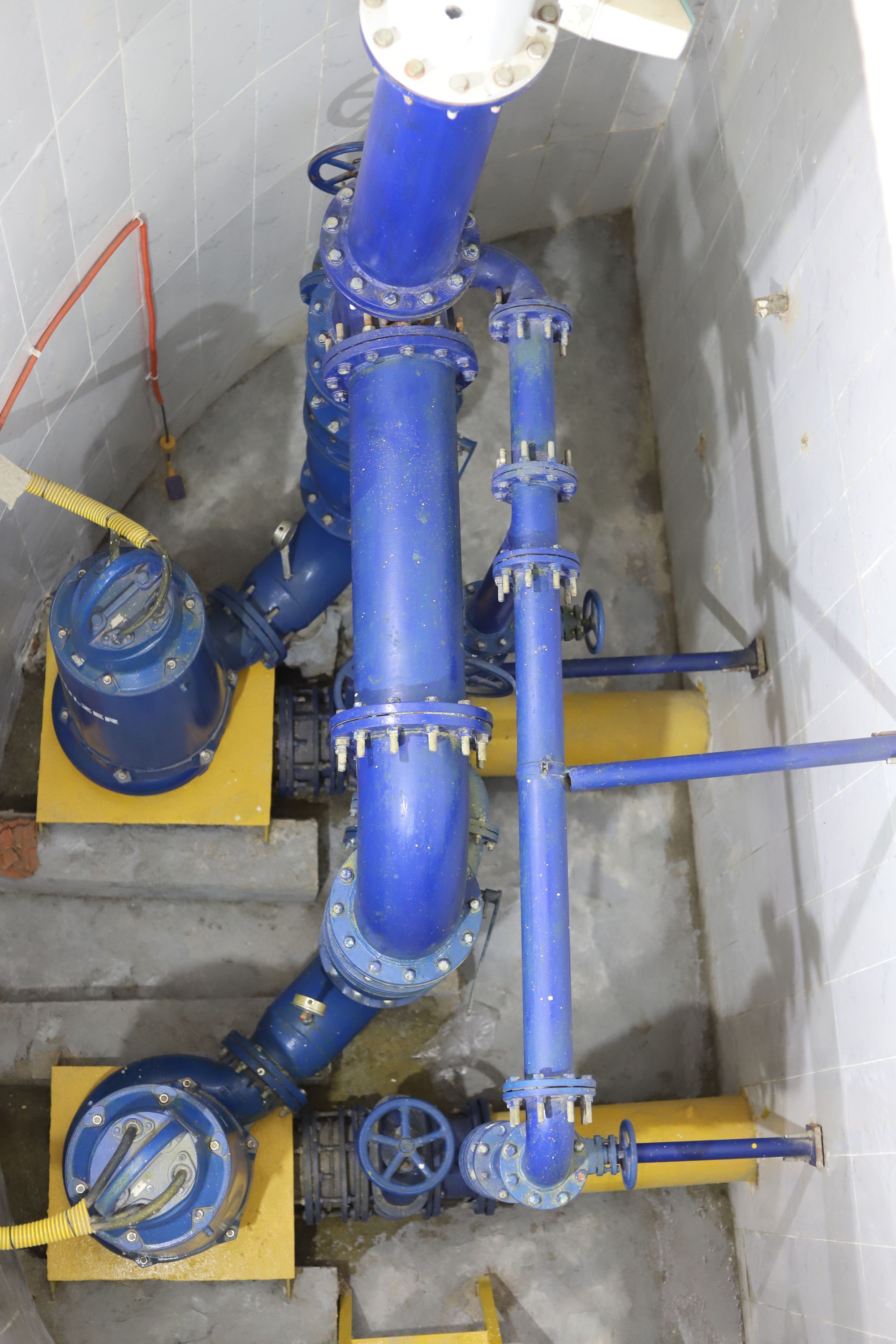

- Main pumps replaced (120 L/s, 22 m head) plus a spare pump
- Replacement of all suction and discharge lines, valves and special parts

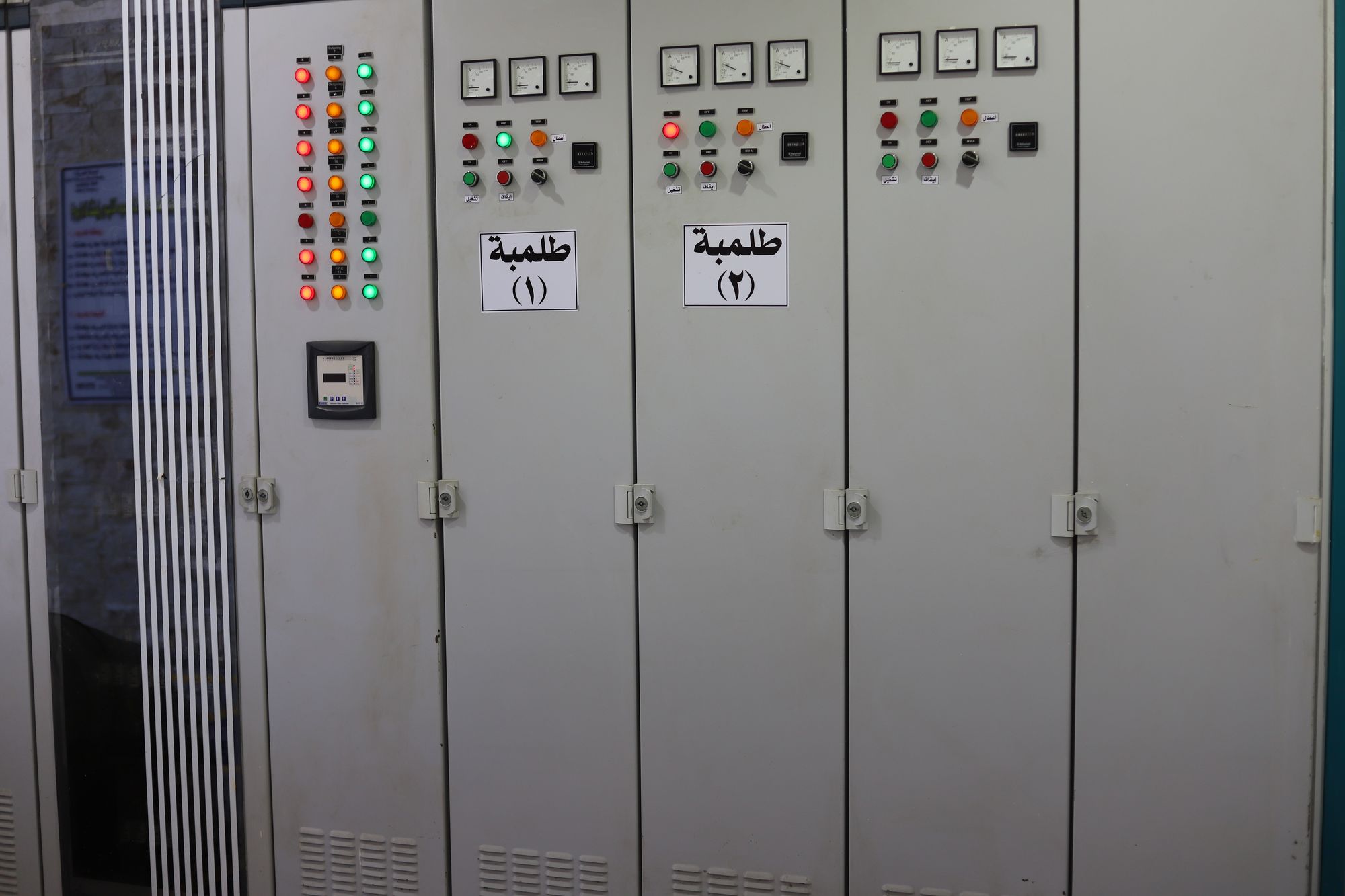

- Low- and medium-voltage panels

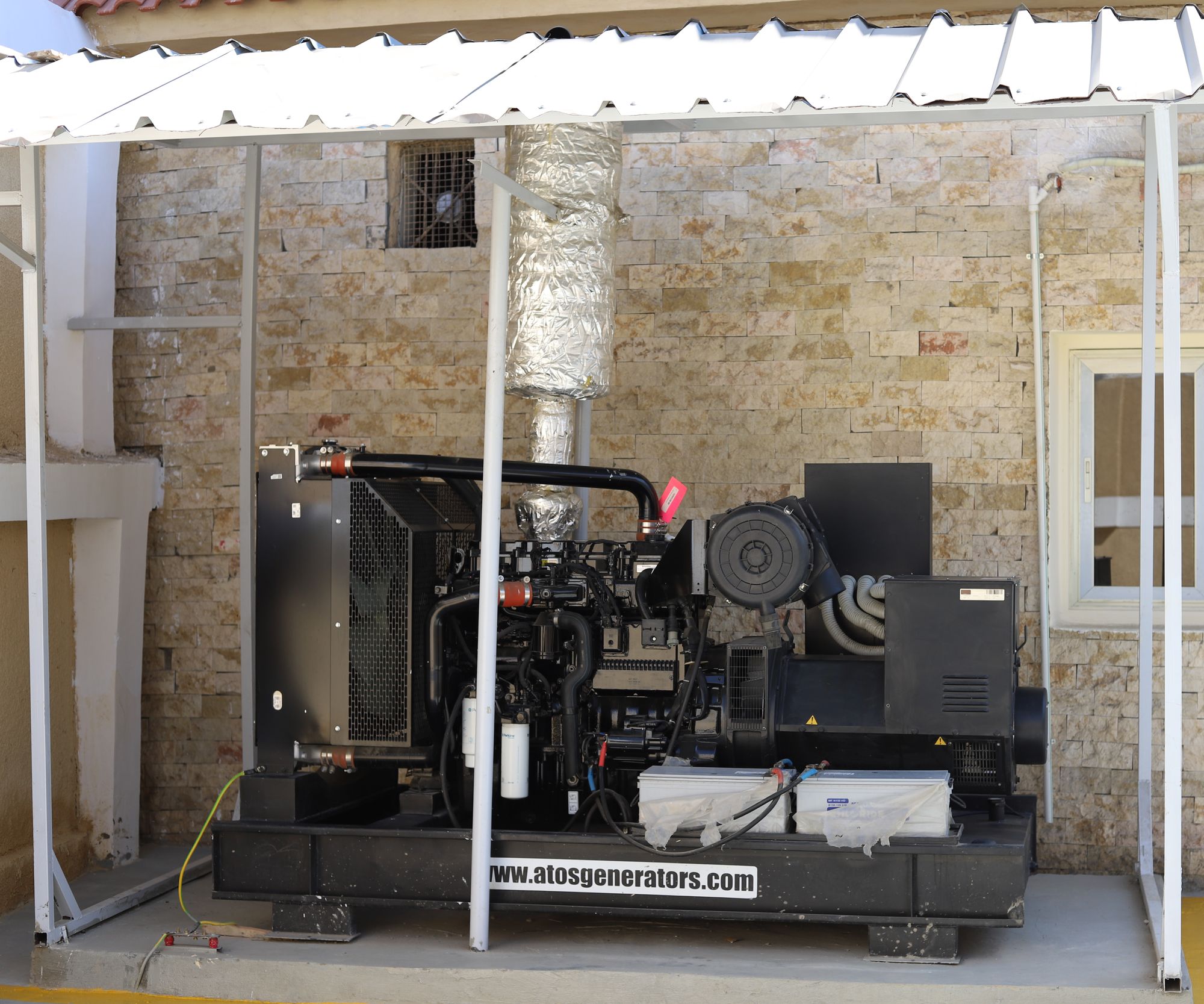

- Generator upgraded from 200 kVA to 250 kVA
- Earthing system
Milestone · October 2020
Al Arbaeen and Al Gabalayat open
Two renewed sewage lifting stations in Suez enter service at an official opening ceremony.
